Outdoor Ready Power Distribution Panels

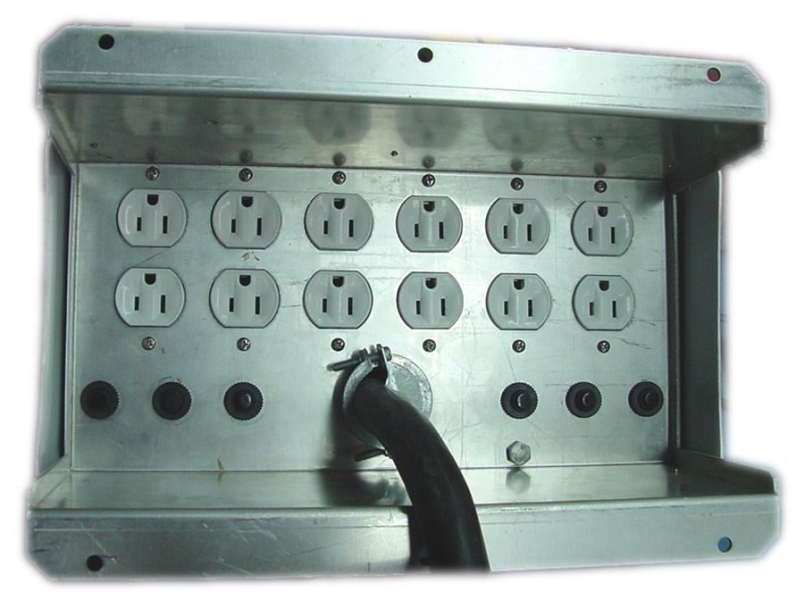

Outlets for 12 cords

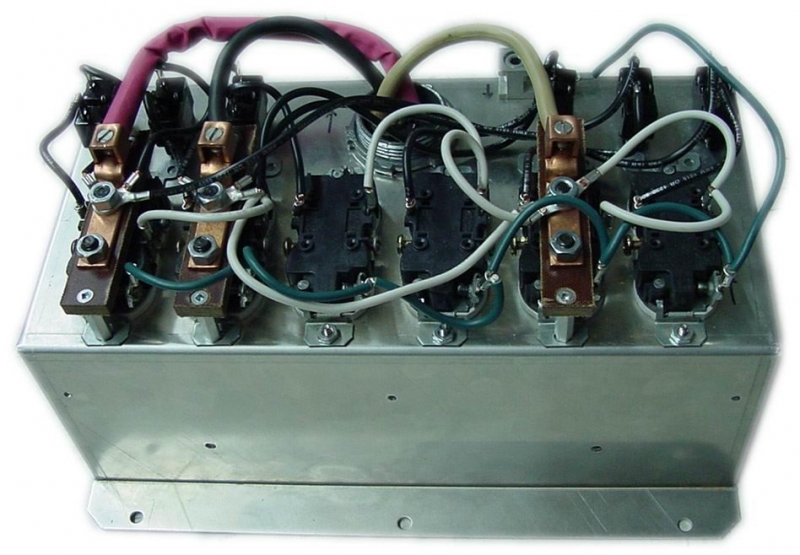

  • 6 duplex outlets each with a 15 Amp breaker
  • outlet are colour coded to show which leg is supplying power (although not shown in these pictures)
  • indicator lights for incoming power
  • total load 6 x 15 Amp circuits = 90 Amps
  • single phase 240/120 VAC, 3 wire (50 Amp feed) or three phase, 208 VAC, 4 wire (30 Amp feed)
  • 1″ box connector for cabtire entrance
  • same package as the 8 channel sequencer

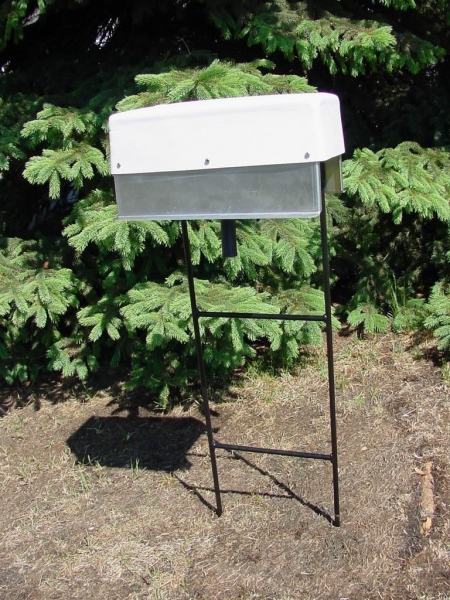

  • mounts on same stands as the sequencers (or set directly on floor or ground)
  • mounts outside in rain or snow
  • stainless steel hardware to prevent corrosion
  • cabtire not supplied (length determined by the customer)

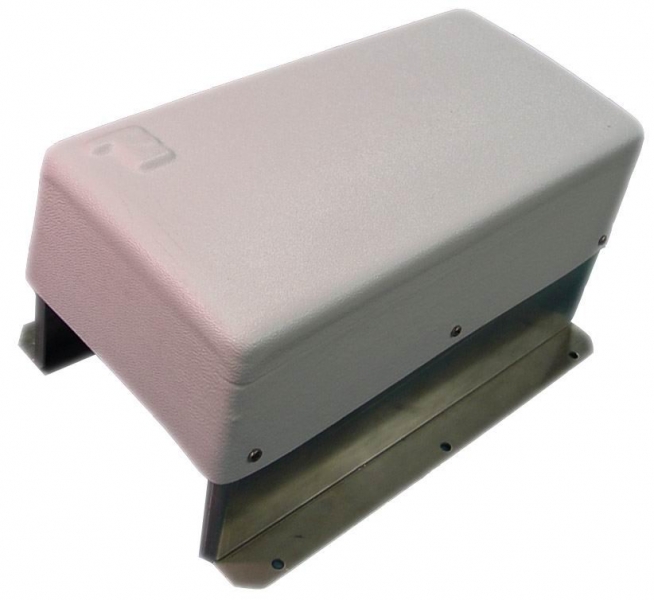

  • aluminum chassis, white ABS cover
  • CSA approved

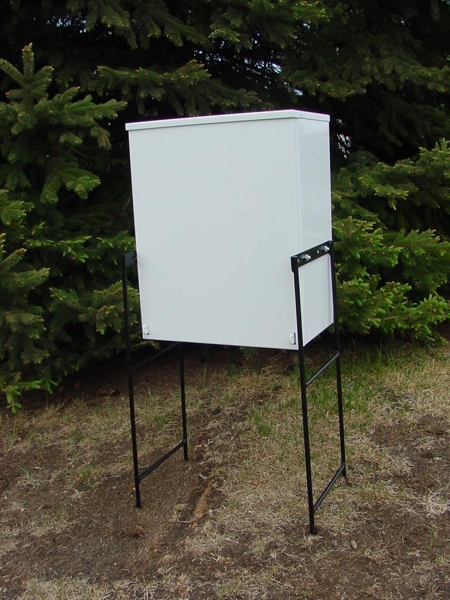

Outlets for 32 cords

  • Outlets are colour coded to show which leg is supplying power
  • 16 duplex outlets each with a 15 Amp breaker
  • indicator lights for incoming power
  • total load: 16 x 15 Amp circuits=180 Amps
  • can be built for single phase 220/240VAC (100 Amp feed) or three phase 208 VAC (60 Amp feed)
  • 1.25″ box connector for cabtire entrance
  • mounts on same stands as the sequencers
  • mounts outside in rain or snow
  • stainless steel hardware to prevent corrosion
  • cabtire not supplied (length determined by the customer)
  • optional current transformers to monitor load balance and maximum load
  • White powder coated steel
  • CSA approved
